4 Columns Hydraulic Press

computer optimization design, three beam and four column structure, simple structure, economic and practical; Integrated control of two-way cartridge valve, connection of anti-leakage ring with flange pipeline system, and reduction of leakage points; PLC electrical control system, action sensitive and reliable; With adjustment, manual, semi-automatic three process specifications and fixed schedule, fixed pressure two control mode; Jacking out of cylinder can realize jacking, unjacking and stretching.

Get quotes Online consulting

Hotline

+86-0516-83531111

60 seconds of human response,Give technical advice within 30 minutes,Free 24 hours plan design

The product description

Performance features:

● computer optimization design, three beam and four column structure, simple structure, economic and practical; Integrated control of two-way cartridge valve, connection of anti-leakage ring with flange pipeline system, and reduction of leakage points; PLC electrical control system, action sensitive and reliable; With adjustment, manual, semi-automatic three process specifications and fixed schedule, fixed pressure two control mode; Jacking out of cylinder can realize jacking, unjacking and stretching.

Configuration:

● conventional configuration, open loop control; The pressure gauge shows the pressure and the travel switch controls the displacement.

Scope of application:

● suitable for stretching, bending, forming, blanking, flanging and other processes.

Optional accessories:

● moving table, buffer device, photoelectric protection, batching device (mechanical, hydraulic), rapid mold change and clamping mechanism.

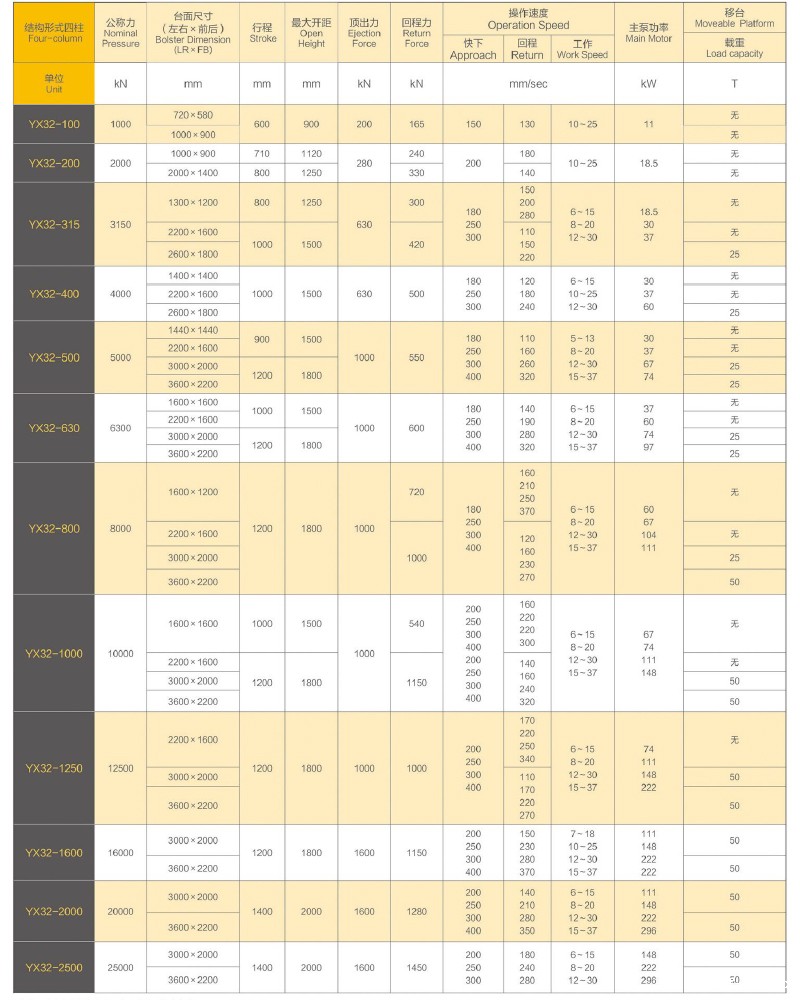

Main technical parameters
